CLINY

PTC Drainage Tube(Under assessment for MDR)

Features and Advantages

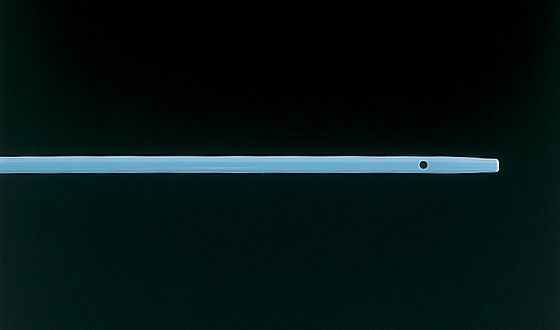

【Straight Type】
The danger of the bile duct wall damage is reduced by the sophisticated taper processing of the tip and the insertion can be made easily.

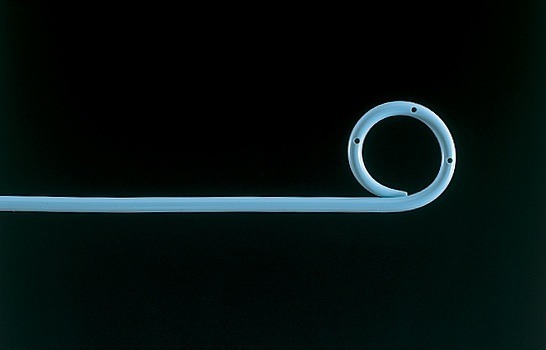

【Pigtail Type】
It is useful to prevent the deviation of the catheter from the bile duct.

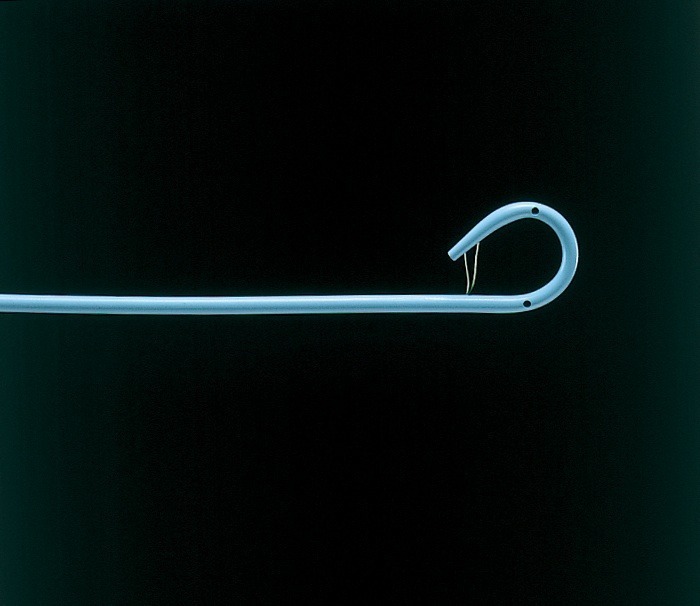

【ρ Type with thread】
Since the loop of the tip part is fixed with thread, it is useful to prevent the deviation of the catheter from the bile duct.

Enlarge product image

Specification

Straight Type
Product Code Size O.D. Effective Length Applicable G/W
003 440 1060 6Fr 2.0mm 350mm 0.89mm (0.035")
003 440 1070 7Fr 2.4mm 350mm 0.89mm (0.035")
003 440 1080 8Fr 2.7mm 350mm 0.97mm (0.038")
003 440 1090 9Fr 3.0mm 350mm 0.97mm (0.038")
003 440 1100 10Fr 3.3mm 350mm 0.97mm (0.038")

5 pieces per box, Sterilized with EtO Gas

Pigtail Type
Product Code Size O.D. Effective Length Applicable G/W
003 440 2070 7Fr 2.3mm 350mm 0.89mm (0.035")
003 440 2080 8Fr 2.7mm 350mm 0.97mm (0.038")
003 440 2090 9Fr 3.0mm 350mm 0.97mm (0.038")
003 440 2100 10Fr 3.3mm 350mm 0.97mm (0.038")

5 pieces per box, Sterilized with EtO Gas

ρ Type with thread
Product Code Size O.D. Effective Length Applicable G/W
003 440 5072 7.2Fr 2.3mm 350mm 0.89mm (0.035")

5 pieces per box, Sterilized with EtO Gas
