CLINY

All Silicone Nephrostomy Balloon Catheter, With Detachable Funnel

Features and Advantages

1. The funnel end can be divided from the catheter
  shaft. It allows the tough mirror sheath to be
  withdrawn easily for removal of calculus.
2. The shaft can be cut in order to adjust to each
  individual case.
3. The funnel and the catheter shaft can be connected
  firmly with the durable plastic connector.
4. The autofusing tape reinforces the connection of
  the funnel and the catheter shaft.
5. Circular lumen can reduce adhesion of foreign
  matters responsible for clogged lumen.

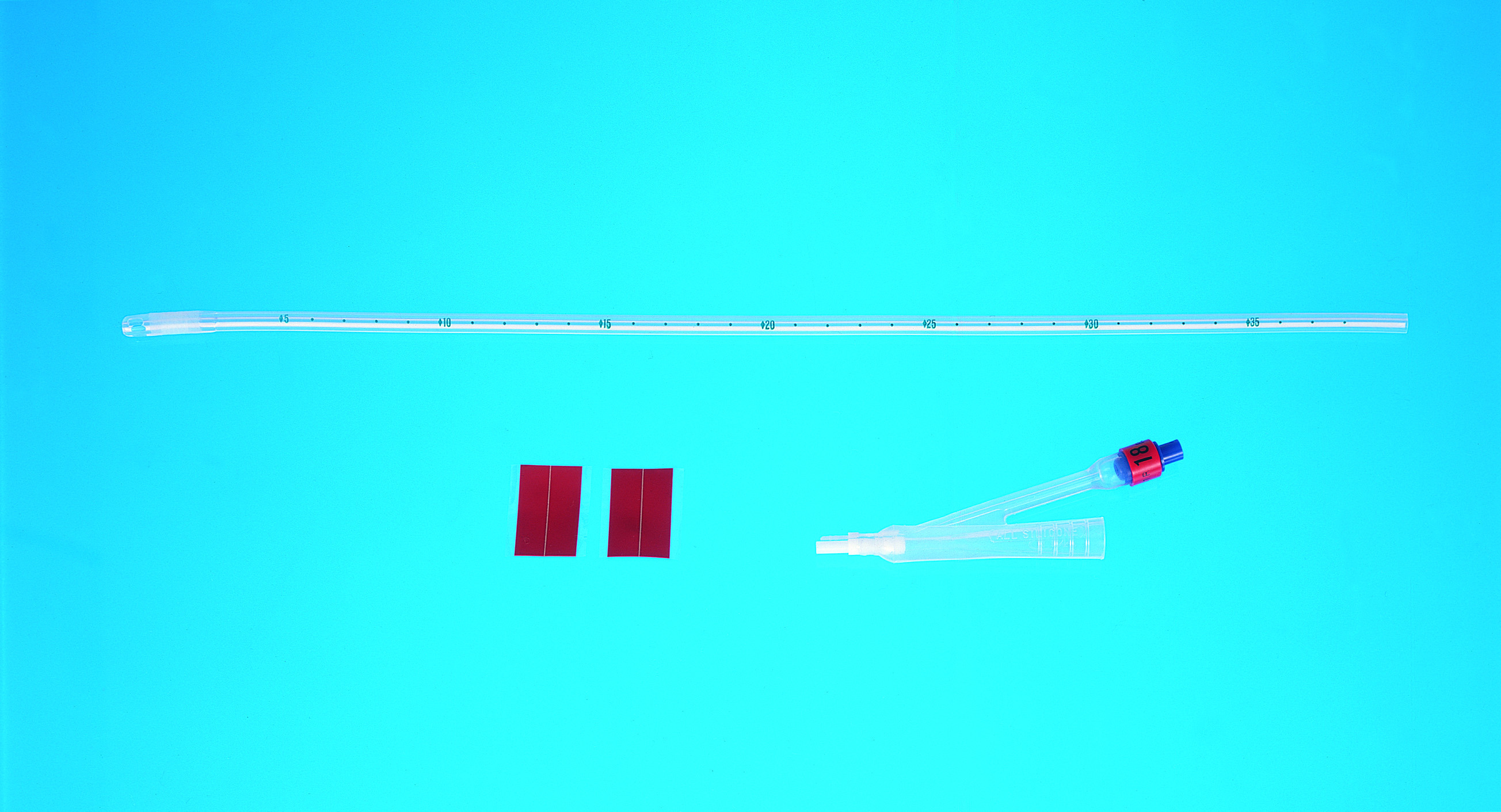

Enlarge product image

Specification

Nephrostomy Balloon Catheter With Detachable Funnel (Transparent Body with White Radiopaque Line)
Product No. Size Balloon O.D. of the
catheter shaft
Length Valve Color Depth Mark
Volume O.D.
05-1912 12Fr 2mL 5.0mm 4.0mm 400mm White Placed at 10mm
intervals between
50 and 380mm
from the tip
05-1914 14Fr 2mL 5.7mm 4.7mm 400mm Green Placed at 10mm
intervals between
50 and 380mm
from the tip
05-1916 16Fr 3mL 6.3mm 5.3mm 400mm Brown Placed at 10mm
intervals between
50 and 380mm
from the tip
05-1918 18Fr 5mL 7.0mm 6.0mm 400mm Red Placed at 10mm
intervals between
50 and 380mm
from the tip
05-1920 20Fr 5mL 7.7mm 6.7mm 400mm Yellow Placed at 10mm
intervals between
50 and 380mm
from the tip
05-1922 22Fr 5mL 8.3mm 7.3mm 400mm Violet Placed at 10mm
intervals between
50 and 380mm
from the tip
05-1924 24Fr 5mL 9.0mm 8.0mm 400mm Blue Placed at 10mm
intervals between
50 and 380mm
from the tip

Open tip with two drainage eyes, 5pcs per box, Sterilized with EtO Gas
