Ileus Tubes for Small intestine(Small Bowel Decompression Long Tube)

Features and advantages

1.Plentiful types and sizes.
Referring to diameters those from 12Fr for children to 20Fr for high flow, and as to length from 2,400mm for easy flow for 3,000mm used for selective contrast radiography of small intestine series as well as those used as splint, and multipurpose types with double balloons in a dual system, together with that with the open-tip type, are available.
2.Air vent to improve suction efficiency.
With the air vent it made the low-pressure continuous suction feasible using a pump, instead of conventional siphon drainage, with further improves the suction effect.

Enlarge product image

  • 433_ext_02_0.jpg
  • 433_ext_02_1.jpg
  • 433_ext_02_2.jpg
  • 433_ext_02_3.jpg

Specification

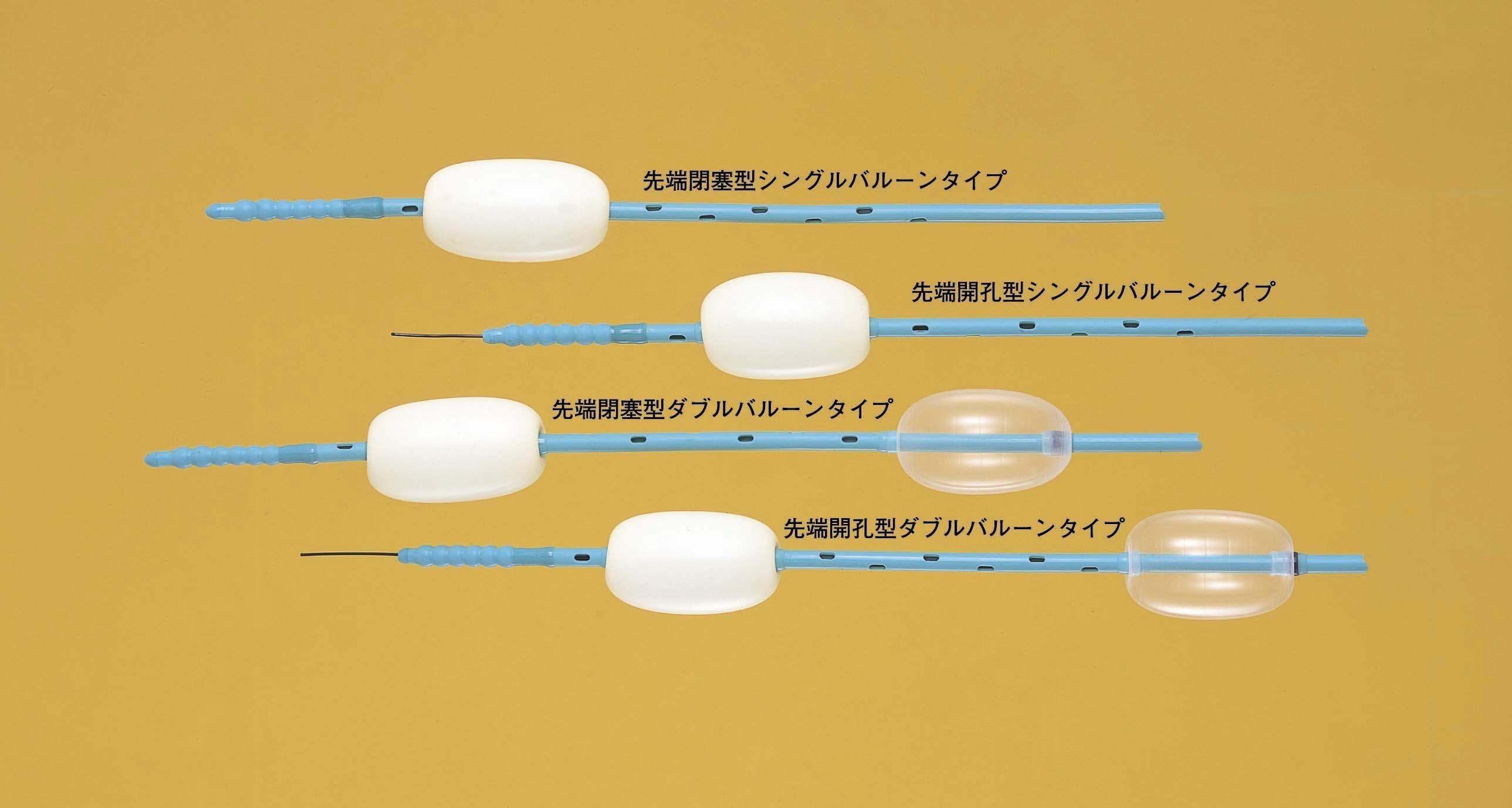

Closed Tip Type
Product Code Size Length Balloon Capacity Type of Balloon Applicable Guide Wire No.
02-35112 12Fr 1,800mm 15mL Single FS-10T.043-2300
02-35214 14Fr 2,400mm 30mL Single FS-10T.043-3000
02-35216 16Fr 2,400mm 30mL Single FS-20T.052-3000
02-3516 16Fr 3,000mm 30mL Single FS-20T.052-3500
02-36316 16Fr 3,000mm 60mL Double FS-20T.052-3500
02-3518 18Fr 2,400mm 30mL Single FS-20T.052-3000
02-36318 18Fr 3,000mm 60mL Double FS-20T.052-3500
02-35220 20Fr 2,400mm 30mL Single FS-20T.052-3000

1 piece per box, Sterilized with EtO Gas

Open Tip Type
Product Code Size Length Balloon Capacity Type of Balloon Applicable Guide Wire No.
02-45216 16Fr 2,400mm 30mL Single FS-20T.052-3000
or -4500
02-46316 16Fr 3,000mm 60mL Double FS-20T.052-3500
or -4500
02-45218 18Fr 2,400mm 30mL Single FS-20T.052-3000
or -4500
02-46318 18Fr 3,000mm 60mL Double FS-20T.052-3500
or -4500

1 piece per box, Sterilized with EtO Gas

Applicable Guide Wire
Product Code O.D. Total Length Remarks
FS-10T .043-2300 1.09mm 2,300mm Soft tip,
Fixed Straight Type
FS-10T .043-3000 1.09mm 3,000mm Soft tip,
Fixed Straight Type
FS-20T .052-3000 1.32mm 3,000mm Soft tip,
Fixed Straight Type
FS-20T .052-3500 1.32mm 3,500mm Soft tip,
Fixed Straight Type
FS-20T .052-4500 1.32mm 4,500mm Soft tip,
Fixed Straight Type

1 piece per box, Sterilized with EtO Gas
