Loop Fixture Ⅱ(Funada's Gastropexy Device for Percutaneous Endoscopic Gastrostomy)

Features and advantages

The operation can be completed with manipulation IN ONE HAND!
 ●Puncture with the Double Needles.
 ●Turn the "Thread Feed Roller" to send thread.
 ●Press the "Loop Insertion Rod" to form the
  Thread Holding Loop.
 ●Press the "Release Button" to hold the thread
  with the Thread Holding Loop.
 ●Withdraw the Needles.

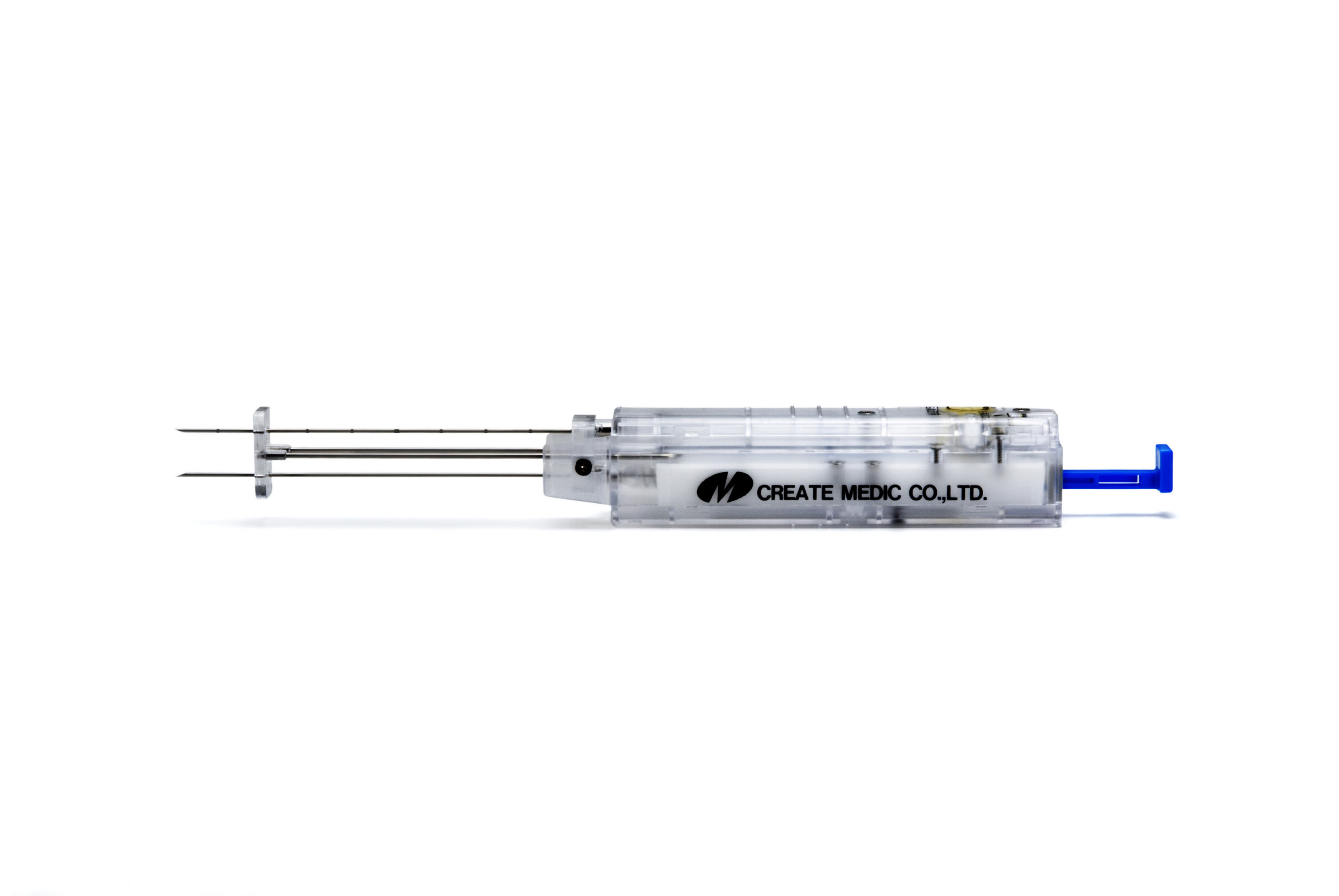

Enlarge product image

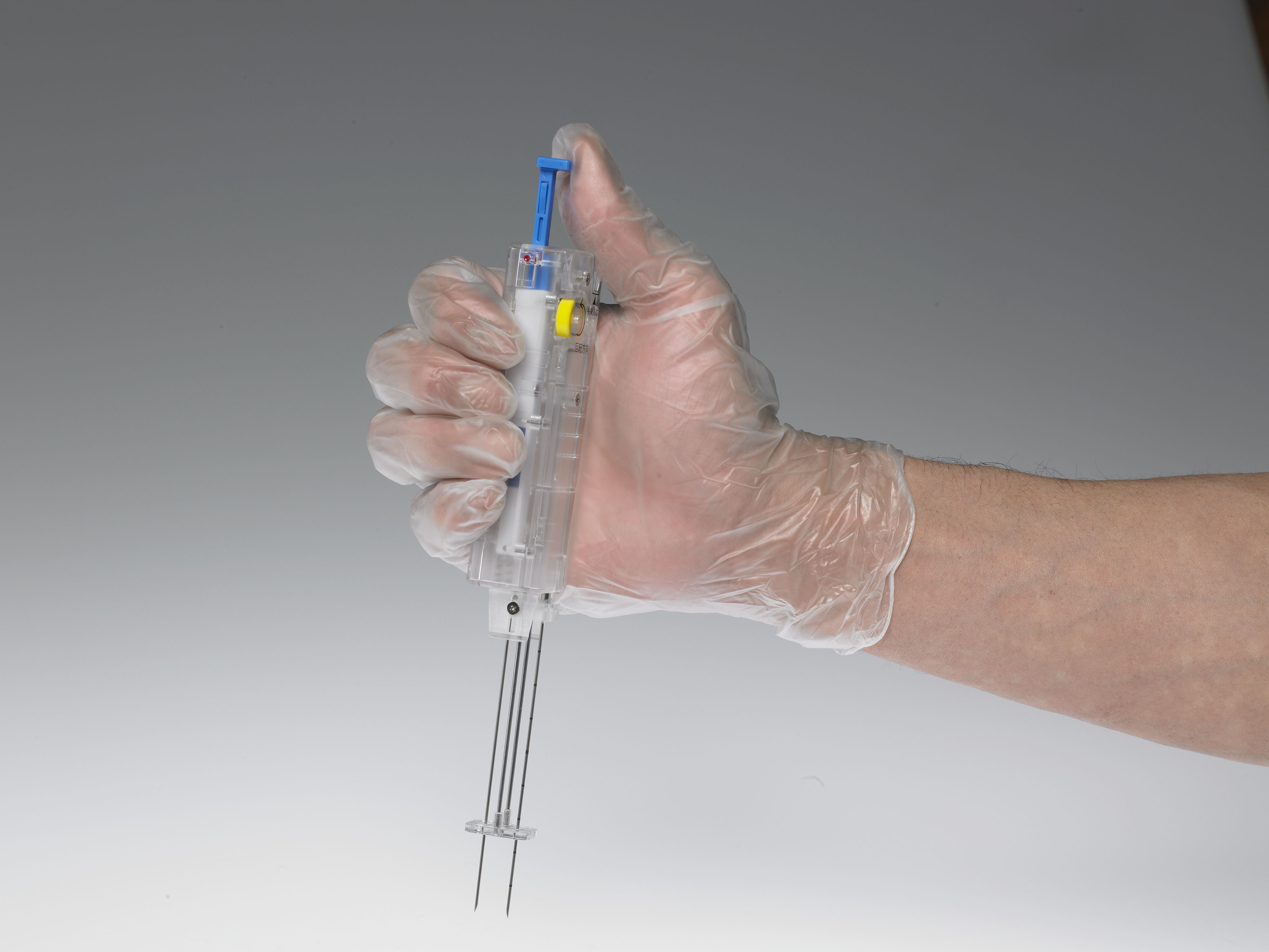

  • Manipulatable in one hand

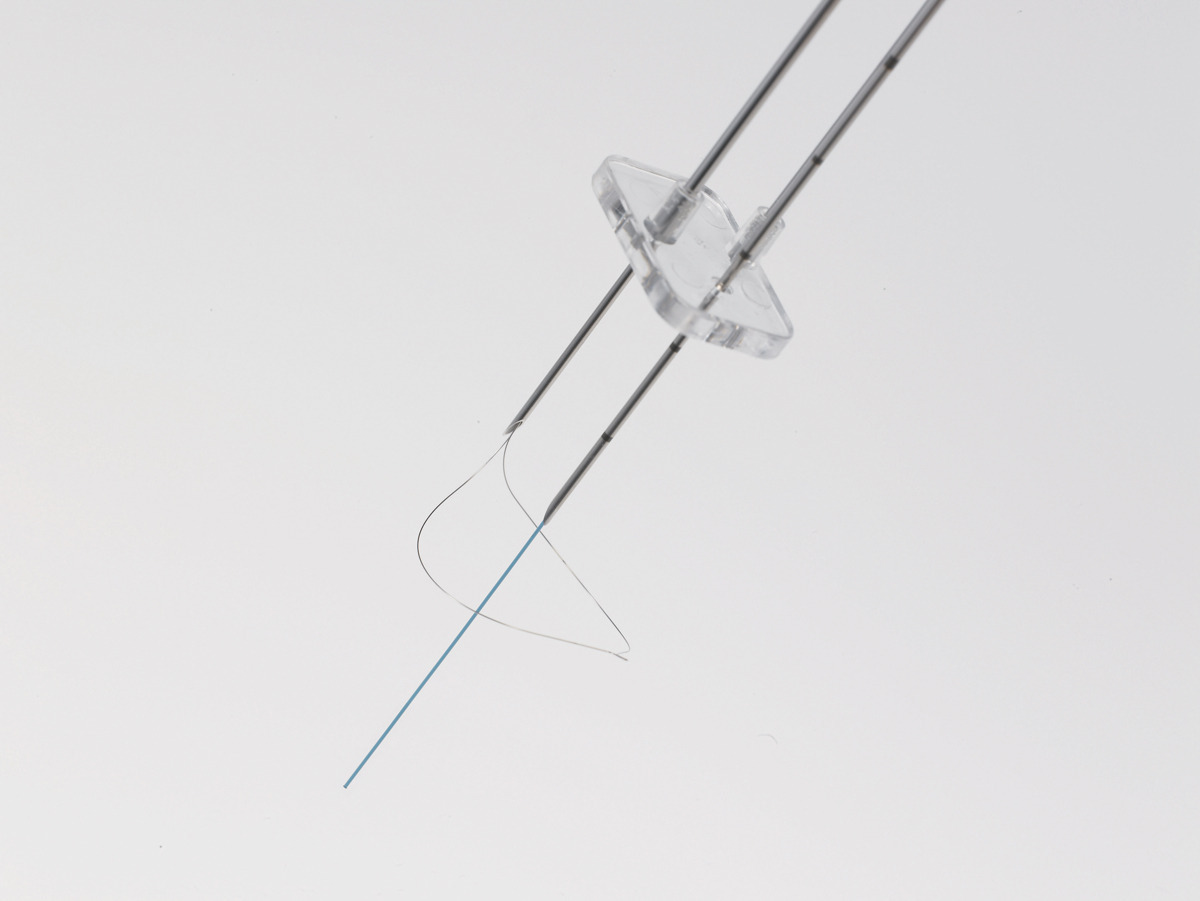

  • Hold the thread with the loop

Specification

Loop Fixture Ⅱ for Percutaneous Gastropexy

Product No. Outer Diameter of
Puncture Needle
Effective Length of
Puncture Needle
Total Length
800 000 9923 20G (0.9mm) 81mm 230mm

1Pc. per box, Sterilized with EtO gas

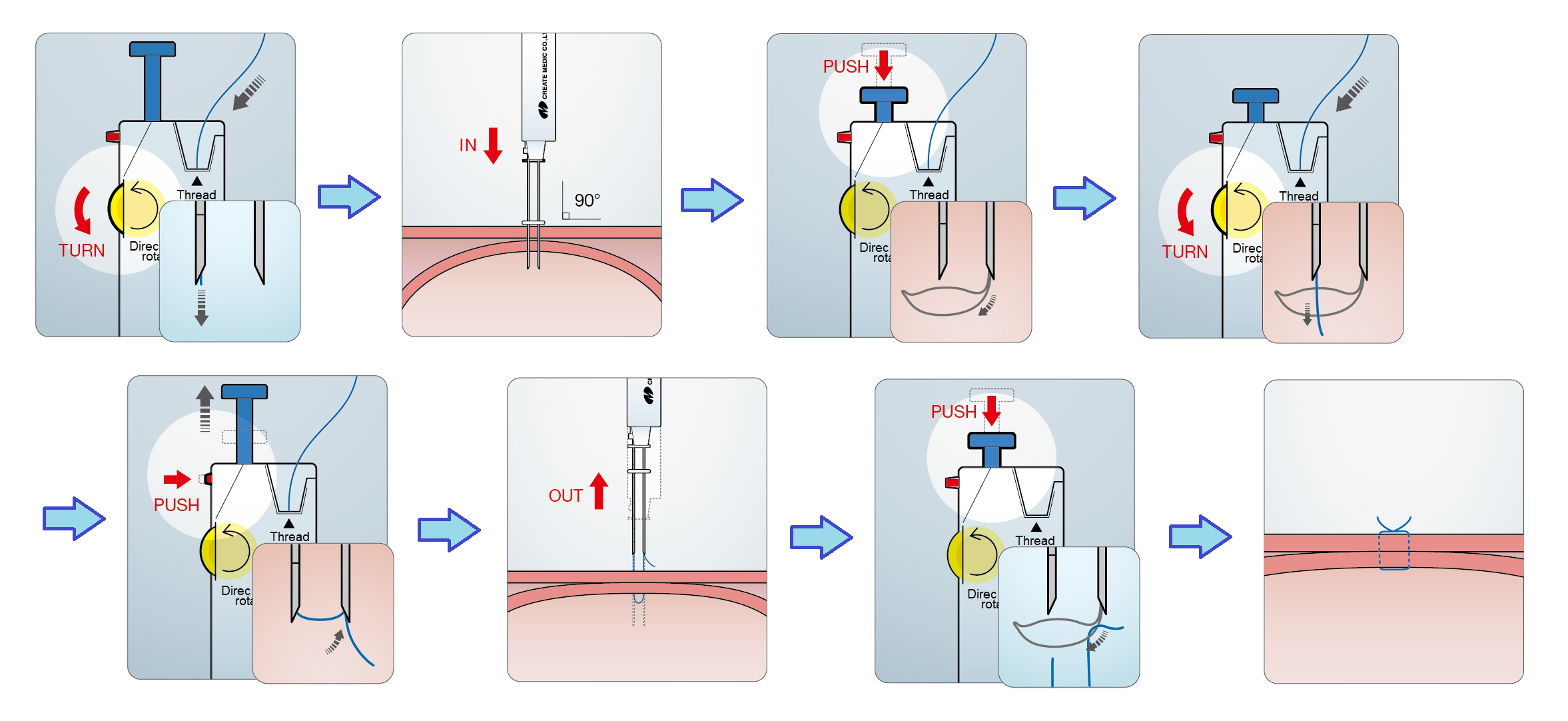

Operation procedure of Percutaneous Gastropexy "in one hand"




Operational Video
