CLINY

PTC Drainage Tube (W/Core Needle)

Features and advantages

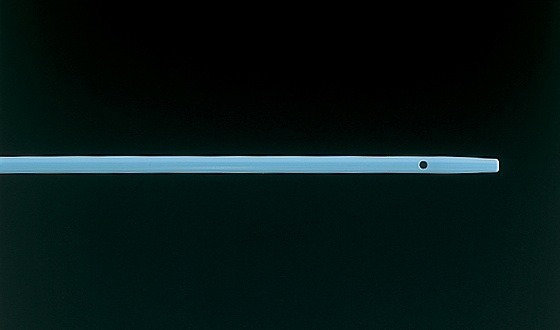

【Straight Type】
The danger of the bile duct wall damage is reduced by the sophisticated taper processing of the tip and the insertion can be made easily.

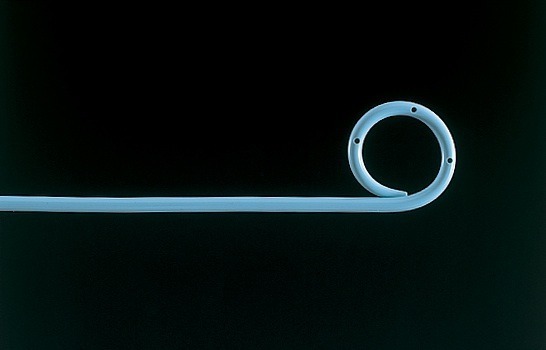

【Pigtail Type】
It is useful to prevent the deviation of the catheter from the bile duct.

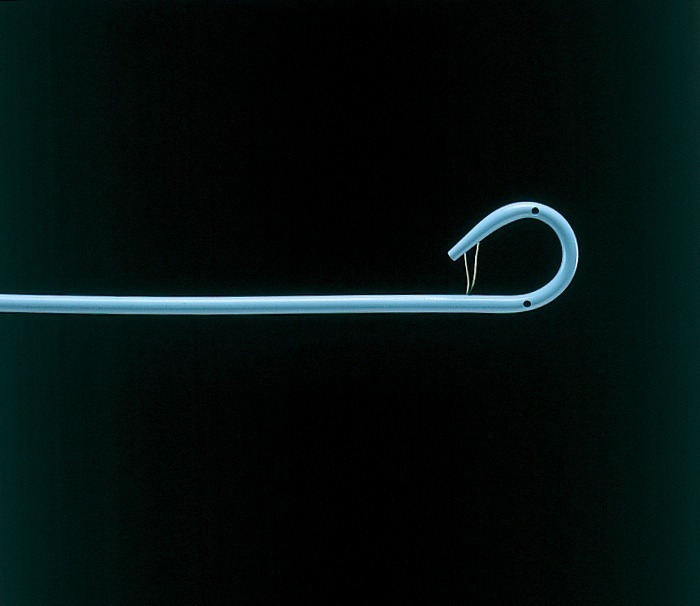

【ρ Type】
Since the loop of the tip part is fixed with thread, it is useful to prevent the deviation of the catheter from the bile duct.

Enlarge product image

Specification

Straight Type
Product Code Size Catheter Puncture needle
Product Code Size O.D. Effective Length Applicable G/W O.D. Effective Length Applicable G/W
003 421 1070 7Fr 2.4mm 280mm 0.097mm(0.038") 1.26mm(18G) 300mm 0.97mm(0.038")
003 421 1080 8Fr 2.7mm 280mm 1.09mm(0.043") 1.48mm(17G) 300mm 1.09mm(0.043")

2 pcs per box, Sterilized with EtO Gas

Pigtail Type
Product Code Size Catheter Puncture needle
Product Code Size O.D. Effective Length Applicable G/W O.D. Effective Length Applicable G/W
003 421 2070 7Fr 2.4mm 280mm 0.097mm(0.038") 1.26mm(18G) 300mm 0.97mm(0.038")
003 421 2080 8Fr 2.7mm 280mm 1.09mm(0.043") 1.48mm(17G) 300mm 1.09mm(0.043")

2 pcs per box, Sterilized with EtO Gas

ρ Type
Product Code Size Catheter Puncture needle
Product Code Size O.D. Effective Length Applicable G/W O.D. Effective Length Applicable G/W
003 421 5072 7.2Fr 2.4mm 225mm 0.097mm(0.038") 1.06mm(19G) 325mm 0.81mm(0.032")

2 pcs per box, Sterilized with EtO Gas
