CLINY

All Silicone PEG J Catheter

Features and advantages

1.It is for jejunal nutritional supply for patients
 who repeatedly suffered from aspiration pneumonia
 even after PEG.

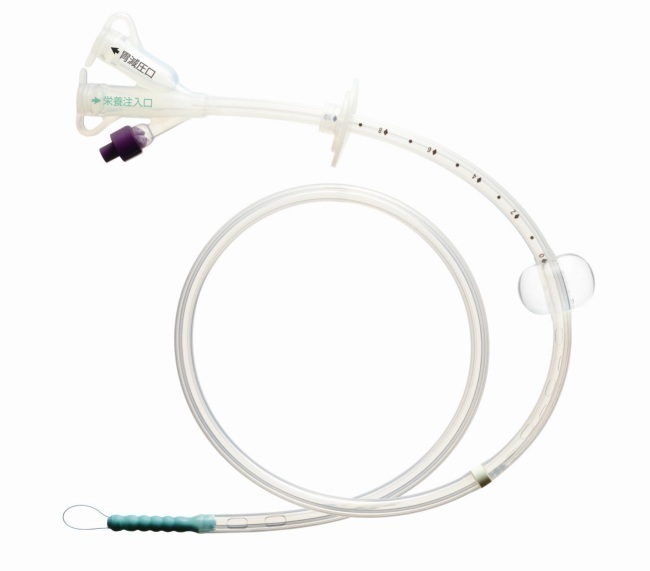

2.Two tip shapes. One is Special Guide Tip type with

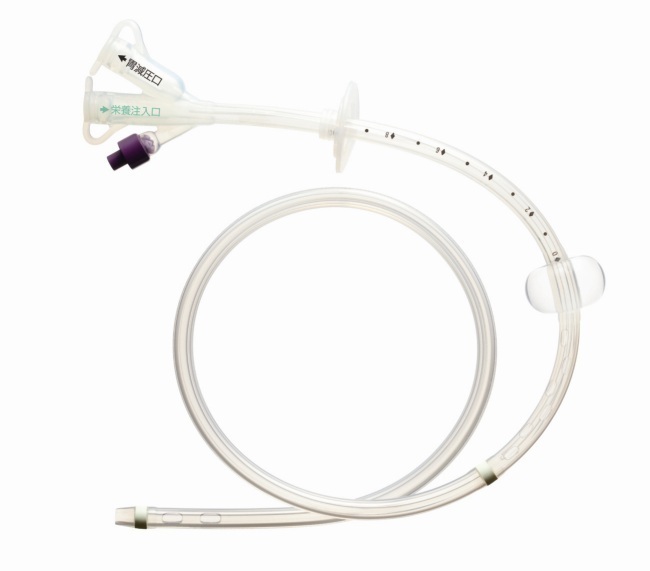

 grasping string. The other is Radiopaque Tip type
 with taper processing.
3.0.045" hydrophilic guidewire with excellent lubricity.
4.Possible to perform gastric decompression from the
 gastric decompression holes under the balloon.

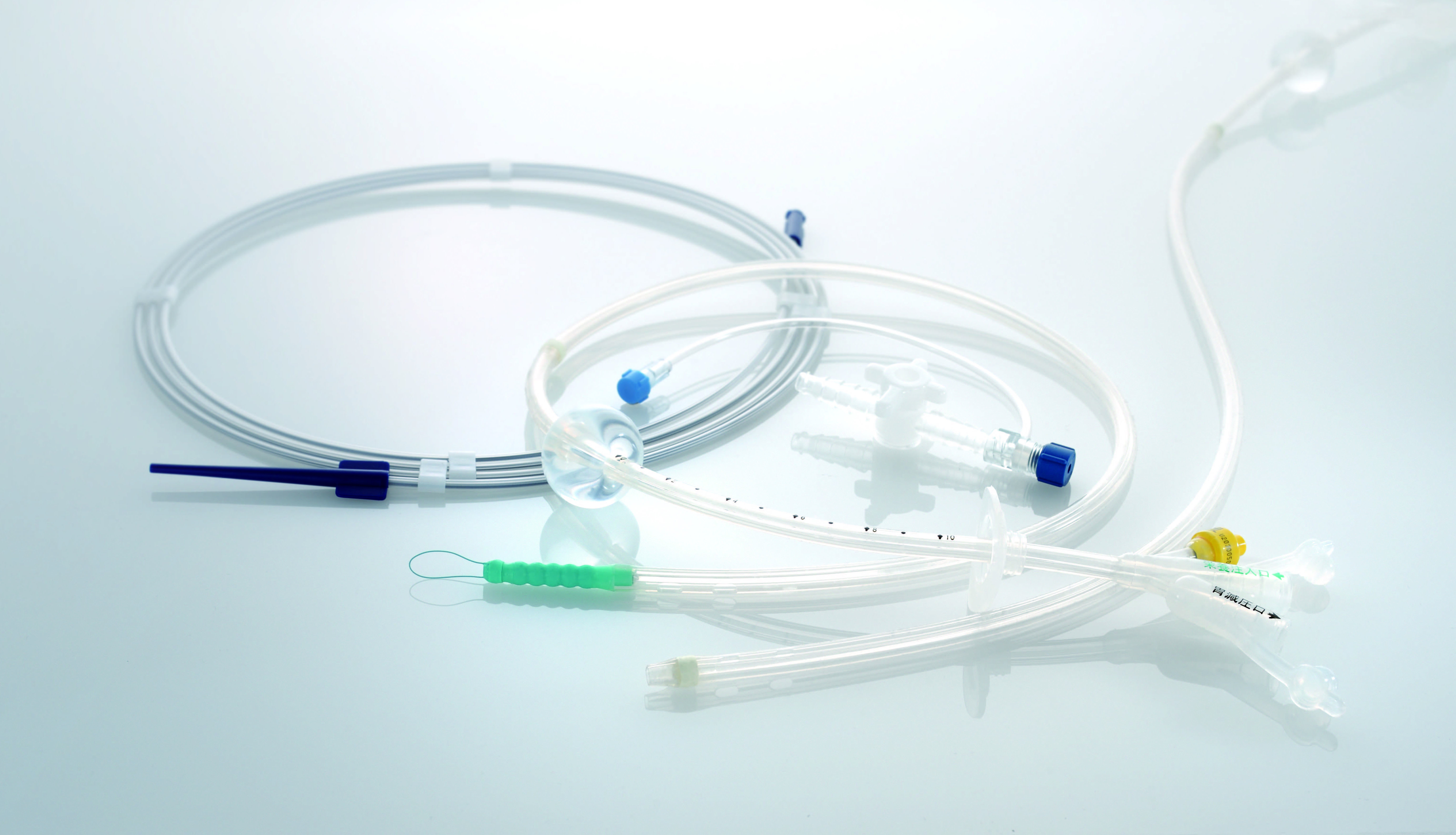

Enlarge product image

Specification

All Silicone PEG J Catheter GW Set, Special Guide Tip Type
Product No. Size Total
Length
Balloon
Capacity
Specification Set contents
800 001 0929 16Fr L-400 600mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・With special open guide tip
・With grasping string
・Jejunal tube
・Hydrophilic Guidewire 0.045" L:2,400mm
・Guidewire fixing device with port
800 001 0930 18Fr L-400 600mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・With special open guide tip
・With grasping string
・Jejunal tube
・Hydrophilic Guidewire 0.045" L:2,400mm
・Guidewire fixing device with port
800 001 0931 20Fr L-400 600mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・With special open guide tip
・With grasping string
・Jejunal tube
・Hydrophilic Guidewire 0.045" L:2,400mm
・Guidewire fixing device with port
800 001 0932 22Fr L-400 600mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・With special open guide tip
・With grasping string
・Jejunal tube
・Hydrophilic Guidewire 0.045" L:2,400mm
・Guidewire fixing device with port
800 001 0933 24Fr L-400 600mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・With special open guide tip
・With grasping string
・Jejunal tube
・Hydrophilic Guidewire 0.045" L:2,400mm
・Guidewire fixing device with port
800 001 0959 16Fr L-600 800mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・With special open guide tip
・With grasping string
・Jejunal tube
・Hydrophilic Guidewire 0.045" L:2,400mm
・Guidewire fixing device with port
800 001 0960 18Fr L-600 800mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・With special open guide tip
・With grasping string
・Jejunal tube
・Hydrophilic Guidewire 0.045" L:2,400mm
・Guidewire fixing device with port
800 001 0961 20Fr L-600 800mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・With special open guide tip
・With grasping string
・Jejunal tube
・Hydrophilic Guidewire 0.045" L:2,400mm
・Guidewire fixing device with port
800 001 0962 22Fr L-600 800mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・With special open guide tip
・With grasping string
・Jejunal tube
・Hydrophilic Guidewire 0.045" L:2,400mm
・Guidewire fixing device with port
800 001 0963 24Fr L-600 800mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・With special open guide tip
・With grasping string
・Jejunal tube
・Hydrophilic Guidewire 0.045" L:2,400mm
・Guidewire fixing device with port

1set per box, Sterilized with EtO Gas

All Silicone PEG J Catheter, Special Guide Tip Type
Product No. Size Total
Length
Balloon
Capacity
Specification Contents
800 001 0939 16Fr L-400 600mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・With special open guide tip
・With grasping string
・Jejunal tube
・Guidewire fixing device with port
800 001 0940 18Fr L-400 600mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・With special open guide tip
・With grasping string
・Jejunal tube
・Guidewire fixing device with port
800 001 0941 20Fr L-400 600mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・With special open guide tip
・With grasping string
・Jejunal tube
・Guidewire fixing device with port
800 001 0942 22Fr L-400 600mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・With special open guide tip
・With grasping string
・Jejunal tube
・Guidewire fixing device with port
800 001 0943 24Fr L-400 600mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・With special open guide tip
・With grasping string
・Jejunal tube
・Guidewire fixing device with port
800 001 0969 16Fr L-600 800mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・With special open guide tip
・With grasping string
・Jejunal tube
・Guidewire fixing device with port
800 001 0970 18Fr L-600 800mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・With special open guide tip
・With grasping string
・Jejunal tube
・Guidewire fixing device with port
800 001 0971 20Fr L-600 800mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・With special open guide tip
・With grasping string
・Jejunal tube
・Guidewire fixing device with port
800 001 0972 22Fr L-600 800mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・With special open guide tip
・With grasping string
・Jejunal tube
・Guidewire fixing device with port
800 001 0973 24Fr L-600 800mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・With special open guide tip
・With grasping string
・Jejunal tube
・Guidewire fixing device with port

1pc per box, Sterilized with EtO Gas

All Silicone PEG J Catheter GW Set, Radiopaque Tip Type
Product No. Size Total
Length
Balloon
Capacity
Specification Set contents
800 001 0934 16Fr L-400 600mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・Open tip with radiopque ring
・Jejunal tube
・Hydrophilic Guidewire 0.045" L:2,400mm
・Guidewire fixing device with port
800 001 0935 18Fr L-400 600mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・Open tip with radiopque ring
・Jejunal tube
・Hydrophilic Guidewire 0.045" L:2,400mm
・Guidewire fixing device with port
800 001 0936 20Fr L-400 600mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・Open tip with radiopque ring
・Jejunal tube
・Hydrophilic Guidewire 0.045" L:2,400mm
・Guidewire fixing device with port
800 001 0937 22Fr L-400 600mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・Open tip with radiopque ring
・Jejunal tube
・Hydrophilic Guidewire 0.045" L:2,400mm
・Guidewire fixing device with port
800 001 0938 24Fr L-400 600mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・Open tip with radiopque ring
・Jejunal tube
・Hydrophilic Guidewire 0.045" L:2,400mm
・Guidewire fixing device with port
800 001 0964 16Fr L-600 800mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・Open tip with radiopque ring
・Jejunal tube
・Hydrophilic Guidewire 0.045" L:2,400mm
・Guidewire fixing device with port
800 001 0965 18Fr L-600 800mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・Open tip with radiopque ring
・Jejunal tube
・Hydrophilic Guidewire 0.045" L:2,400mm
・Guidewire fixing device with port
800 001 0966 20Fr L-600 800mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・Open tip with radiopque ring
・Jejunal tube
・Hydrophilic Guidewire 0.045" L:2,400mm
・Guidewire fixing device with port
800 001 0967 22Fr L-600 800mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・Open tip with radiopque ring
・Jejunal tube
・Hydrophilic Guidewire 0.045" L:2,400mm
・Guidewire fixing device with port
800 001 0968 24Fr L-600 800mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・Open tip with radiopque ring
・Jejunal tube
・Hydrophilic Guidewire 0.045" L:2,400mm
・Guidewire fixing device with port

1set per box, Sterilized with EtO Gas

All Silicone PEG J Catheter, Radiopaque Tip Type
Product No. Size Total
Length
Balloon
Capacity
Specification Contents
800 001 0944 16Fr L-400 600mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・Open tip with radiopque ring
・Jejunal tube
・Guidewire fixing device with port
800 001 0945 18Fr L-400 600mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・Open tip with radiopque ring
・Jejunal tube
・Guidewire fixing device with port
800 001 0946 20Fr L-400 600mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・Open tip with radiopque ring
・Jejunal tube
・Guidewire fixing device with port
800 001 0947 22Fr L-400 600mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・Open tip with radiopque ring
・Jejunal tube
・Guidewire fixing device with port
800 001 0948 24Fr L-400 600mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・Open tip with radiopque ring
・Jejunal tube
・Guidewire fixing device with port
800 001 0974 16Fr L-600 800mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・Open tip with radiopque ring
・Jejunal tube
・Guidewire fixing device with port
800 001 0975 18Fr L-600 800mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・Open tip with radiopque ring
・Jejunal tube
・Guidewire fixing device with port
800 001 0976 20Fr L-600 800mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・Open tip with radiopque ring
・Jejunal tube
・Guidewire fixing device with port
800 001 0977 22Fr L-600 800mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・Open tip with radiopque ring
・Jejunal tube
・Guidewire fixing device with port
800 001 0978 24Fr L-600 800mm 10mL ・With radiopaque line
・With radiopaque ring
・Depth marks: At 1cm intervals
between 0 and 10cm
from the balloon end.
・Open tip with radiopque ring
・Jejunal tube
・Guidewire fixing device with port

1pc per box, Sterilized with EtO Gas

Operational Video

Print

TOP
