CLINY

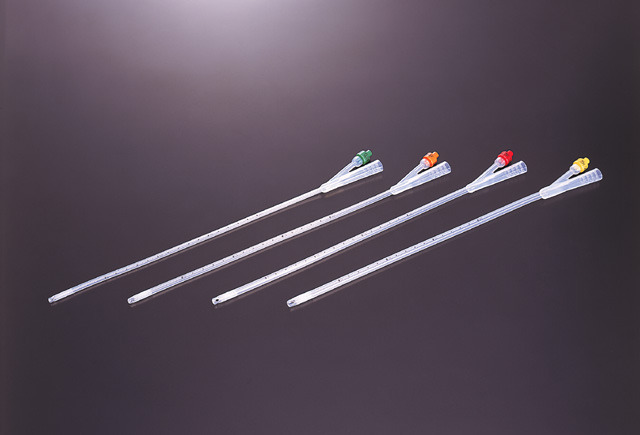

All Silicone Nephrostomy Balloon Catheter(F Type)

Features and Advantages

1. The Flat Balloon which has no difference
  of diameter with the shaft makes the insertion
  and the removal of the catheter smoothly. It
  reduces damage of fistula.
2. The special flattened balloon can be indwelt or
  fixed tightly within the smallest space.

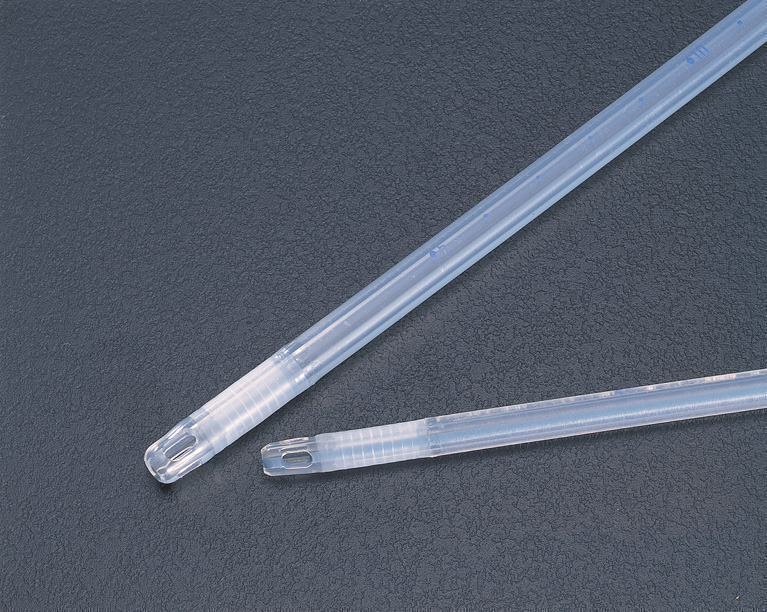

3. The short tip provides effective drainage with
  minimum residual urine.
4. 100% silicone will not injure tissue, thus, the
  continuous and efficient urination with comforts
  of patients can be expected.

Enlarge product image

Specification

F Type (Transparent tube with white radiopaque line)
Product No. Size O.D. Length Balloon capacity Side hole Depth mark Valve color
05-5608   8Fr 2.7mm 340mm 1mL 2 side holes Placed at 10mm intervals between 50 and 200mm from the tip Red
05-5610 10Fr 3.3mm 340mm 1mL 2 side holes Placed at 10mm intervals between 50 and 200mm from the tip Yellow
05-5612 12Fr 4.0mm 340mm 1.5mL 2 side holes Placed at 10mm intervals between 50 and 200mm from the tip White
05-5614 14Fr 4.7mm 340mm 2mL 2 side holes Placed at 10mm intervals between 50 and 200mm from the tip Green
05-5616 16Fr 5.3mm 340mm 3mL 2 side holes Placed at 10mm intervals between 50 and 200mm from the tip Orange
05-5618 18Fr 6.0mm 340mm 5mL 2 side holes Placed at 10mm intervals between 50 and 200mm from the tip Red
05-5620 20Fr 6.7mm 340mm 5mL 2 side holes Placed at 10mm intervals between 50 and 200mm from the tip Yellow
05-5622 22Fr 7.3mm 340mm 5mL 2 side holes Placed at 10mm intervals between 50 and 200mm from the tip Violet
05-5624 24Fr 8.0mm 340mm 5mL 2 side holes Placed at 10mm intervals between 50 and 200mm from the tip Blue

10pcs per box, Sterilized with EtO Gas
