CLINY

Internal External Drainage Catheter

Features and advantages

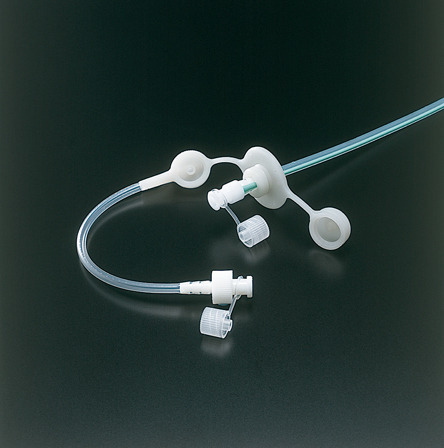

1.It is possible to surely fix the tube with an
 integrated stabilizer on the skin.
2.It is possible to select either use of external
 drainage or internal drainage and is very easy
 to manage the tube.
3.It is possible to drain bile juice sufficiently
 and to select either 10 holes type or 15 holes type.
4.The cap for external drainage is small and it
 doesn’t disturb patient movement.
5.The cap for external drainage can be cut when the
 tube is used as internal drainage.

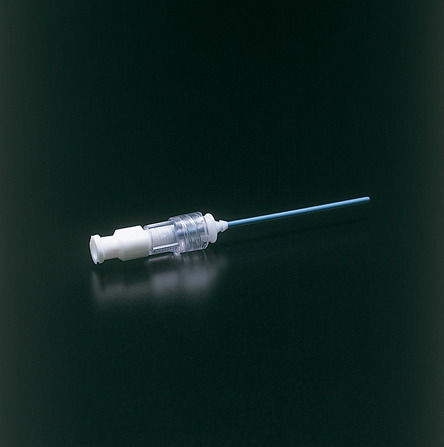

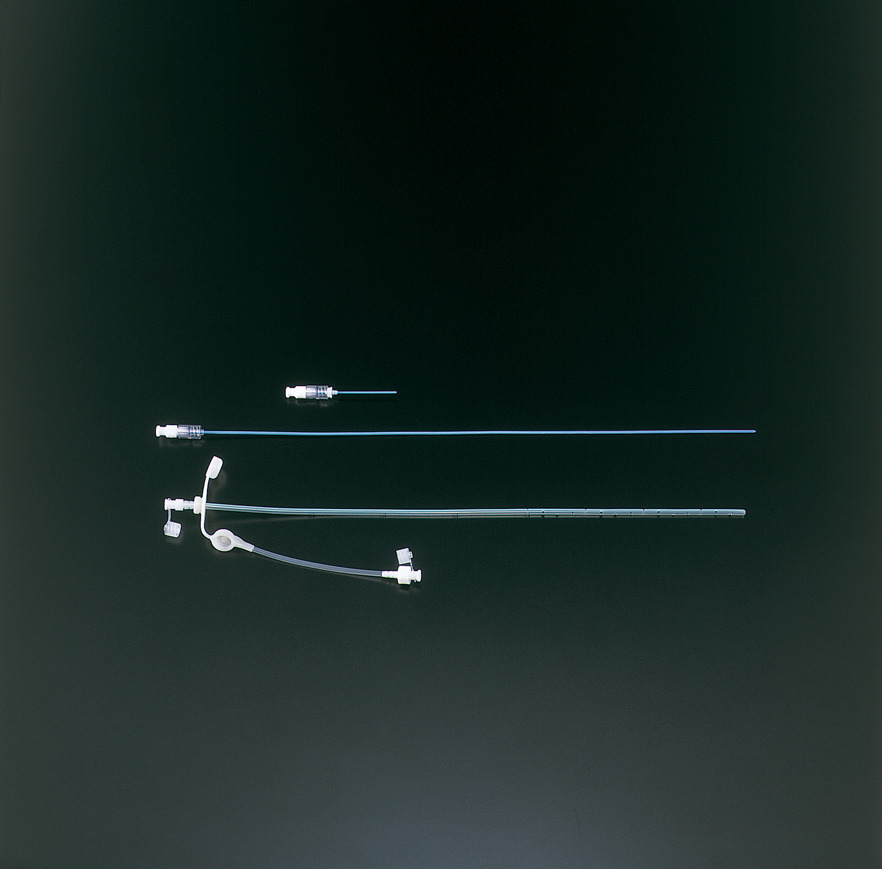

Enlarge product image

Specification

10 side holes
Product Code Size O.D. - I.D. (mm) Applicable G/W Side holes Depth marks
800 000 5325 8Fr 2.7 - 1.5 0.64mm (0.025") 10 holes at 10mm intervals between 10mm and 100mm from tip. 10mm intervals between 100mm and 300mm from tip.
800 000 5326 10Fr 3.3 - 1.8 0.89mm (0.035") 10 holes at 10mm intervals between 10mm and 100mm from tip. 10mm intervals between 100mm and 300mm from tip.
800 000 5327 12Fr 4.0 - 2.2 0.89mm (0.035") 10 holes at 10mm intervals between 10mm and 100mm from tip. 10mm intervals between 100mm and 300mm from tip.
800 000 5328 14Fr 4.8 - 2.5 0.89mm (0.035") 10 holes at 10mm intervals between 10mm and 100mm from tip. 10mm intervals between 100mm and 300mm from tip.
800 000 5329 16Fr 5.3 - 3.0 0.97mm (0.038") 10 holes at 10mm intervals between 10mm and 100mm from tip. 10mm intervals between 100mm and 300mm from tip.
800 000 5330 18Fr 6.0 - 3.4 0.97mm (0.038") 10 holes at 10mm intervals between 10mm and 100mm from tip. 10mm intervals between 100mm and 300mm from tip.

2 pcs per box, Sterilized with EtO Gas

15 side holes
Product Code Size O.D. - I.D. (mm) Applicable G/W Side holes Depth marks
800 000 5607 8Fr 2.7 - 1.5 0.64mm (0.025") 15 holes at 10mm intervals between 10mm and 150mm from tip. 10mm intervals between 150mm and 300mm from tip.
800 000 5608 10Fr 3.3 - 1.8 0.89mm (0.035") 15 holes at 10mm intervals between 10mm and 150mm from tip. 10mm intervals between 150mm and 300mm from tip.
800 000 5609 12Fr 4.0 - 2.2 0.89mm (0.035") 15 holes at 10mm intervals between 10mm and 150mm from tip. 10mm intervals between 150mm and 300mm from tip.
800 000 5610 14Fr 4.8 - 2.5 0.89mm (0.035") 15 holes at 10mm intervals between 10mm and 150mm from tip. 10mm intervals between 150mm and 300mm from tip.
800 000 5611 16Fr 5.3 - 3.0 0.97mm (0.038") 15 holes at 10mm intervals between 10mm and 150mm from tip. 10mm intervals between 150mm and 300mm from tip.
800 000 5612 18Fr 6.0 - 3.4 0.97mm (0.038") 15 holes at 10mm intervals between 10mm and 150mm from tip. 10mm intervals between 150mm and 300mm from tip.

2 pcs per box, Sterilized with EtO Gas
