ARTEC

Micro Catheters

Features and advantages

1.8 types of Micro Catheters that can be used for
 a variety of cases and situations.
2.The special designed flexible tip part can trace
 any GW location in tortuous vessels when inserted
 super selectively.Our original technology achieves
 excellent flexibility and tractability in our
 special production process with a full blade.
3.Developed specially designed segments with
 hardness variations and supports the catheter’s
 performance in procedures with confidence.
4.Any preferable shape of the tip can be made by
 using the mandrel gently and carefully molded by
 the operator.

Enlarge product image

Specification

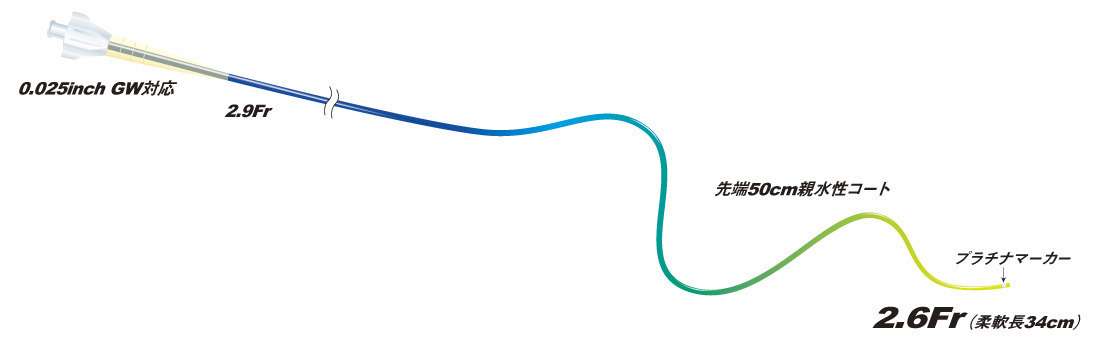

RIVAGE 2.6Fr/2.9Fr
Product Name Product Code Length (mm) Distal O.D./
Proximal O.D.
Hydrophilic Coating l
Length (from tip)
Shaft I.D. Max. Applicable G/W Pressure Proof Value
RIVAGE 800 000 9063 1050 2.6Fr/
2.9Fr
500mm 0.76mm
(0.030inch)
0.64mm
(0.025inch)
8.3MPa
(1200PSI)
RIVAGE 800 001 3397 1100 2.6Fr/
2.9Fr
500mm 0.76mm
(0.030inch)
0.64mm
(0.025inch)
8.3MPa
(1200PSI)
RIVAGE 800 000 9064 1350 2.6Fr/
2.9Fr
500mm 0.76mm
(0.030inch)
0.64mm
(0.025inch)
8.3MPa
(1200PSI)
RIVAGE 800 000 9065 1500 2.6Fr/
2.9Fr
500mm 0.76mm
(0.030inch)
0.64mm
(0.025inch)
8.3MPa
(1200PSI)

1 piece per box, Sterilized with EtO Gas

MIRABEAUⅡ 2.6Fr/2.9Fr
Product Name Product Code Length (mm) Distal O.D./
Proximal O.D.
Hydrophilic Coating Length (from tip) Shaft I.D. Max. Applicable G/W Pressure Proof Value
MIRABEAUⅡ 800 001 0177 1050 2.1Fr/2.9Fr 620mm 0.66mm
(0.026inch)
0.46mm
(0.018inch)
8.3MPa
(1200PSI)
MIRABEAUⅡ 800 001 3401 1100 2.1Fr/2.9Fr 620mm 0.66mm
(0.026inch)
0.46mm
(0.018inch)
8.3MPa
(1200PSI)
MIRABEAUⅡ 800 001 0178 1350 2.1Fr/2.9Fr 920mm 0.66mm
(0.026inch)
0.46mm
(0.018inch)
8.3MPa
(1200PSI)
MIRABEAUⅡ 800 001 0179 1500 2.1Fr/2.9Fr 1070mm 0.66mm
(0.026inch)
0.46mm
(0.018inch)
8.3MPa
(1200PSI)

1 piece per box, Sterilized with EtO Gas

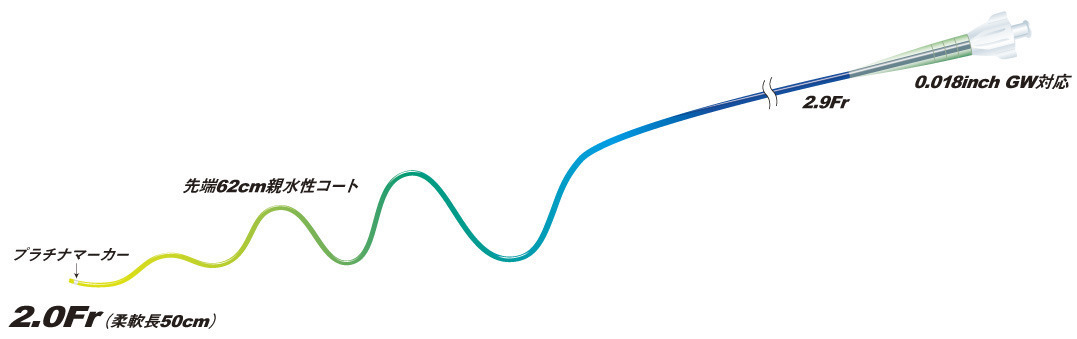

LOEWS 2.0Fr/2.9Fr
Product Name Product Code Length (mm) Distal O.D./
Proximal O.D.
Hydrophilic Coating Length (from tip) Shaft I.D. Max. Applicable G/W Pressure Proof Value
LOEWS 800 000 9281 1050 2.0Fr/2.9Fr 620mm 0.60mm
(0.024inch)
0.46mm
(0.018inch)
8.3MPa
(1200PSI)
LOEWS 800 001 3405 1100 2.0Fr/2.9Fr 620mm 0.60mm
(0.024inch)
0.46mm
(0.018inch)
8.3MPa
(1200PSI)
LOEWS 800 000 9282 1350 2.0Fr/2.9Fr 620mm 0.60mm
(0.024inch)
0.46mm
(0.018inch)
8.3MPa
(1200PSI)
LOEWS 800 000 9280 1500 2.0Fr/2.9Fr 620mm 0.60mm
(0.024inch)
0.46mm
(0.018inch)
8.3MPa
(1200PSI)

1 piece per box, Sterilized with EtO Gas

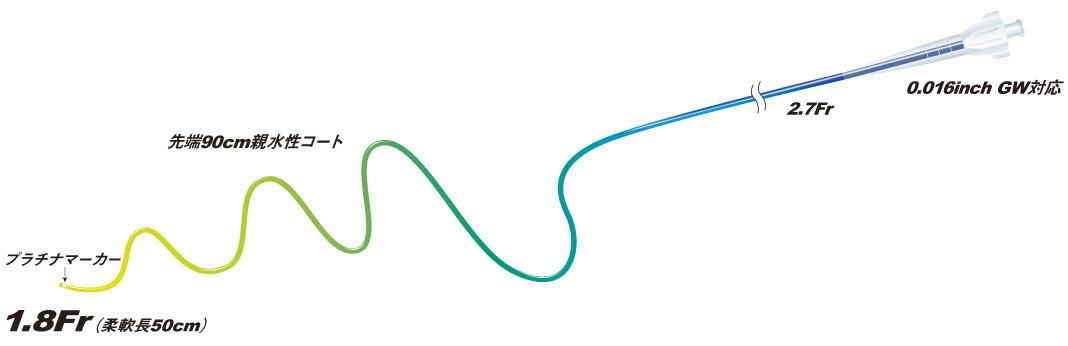

PORTIER 1.8Fr/2.7Fr
Product Name Product Code Length (mm) Distal O.D./
Proximal O.D.
Hydrophilic Coating Length (from tip) Shaft I.D. Max. Applicable G/W Pressure Proof Value
PORTIER 800 000 8171 1050 1.8Fr/2.7Fr 900mm 0.53mm
(0.021inch)
0.41mm
(0.016inch)
7.2MPa
(1050PSI)
PORTIER 800 001 3409 1100 1.8Fr/2.7Fr 900mm 0.53mm
(0.021inch)
0.41mm
(0.016inch)
7.2MPa
(1050PSI)
PORTIER 800 000 8172 1350 1.8Fr/2.7Fr 900mm 0.53mm
(0.021inch)
0.41mm
(0.016inch)
7.2MPa
(1050PSI)
PORTIER 800 000 8173 1500 1.8Fr/2.7Fr 1200mm 0.53mm
(0.021inch)
0.41mm
(0.016inch)
7.2MPa
(1050PSI)

1 piece per box, Sterilized with EtO Gas

PORTIER Ⅱ 1.8Fr/2.8Fr
Product Name Product Code Length (mm) Distal O.D./
Proximal O.D.
Hydrophilic Coating Length (from tip) Shaft I.D. Max. Applicable G/W Pressure Proof Value
PORTIER Ⅱ 800 000 8869 1050 1.8Fr/2.8Fr 920mm 0.59mm
(0.023inch)
0.41mm
(0.016inch)
8.3MPa
(1200PSI)
PORTIER Ⅱ 800 001 3413 1100 1.8Fr/2.8Fr 920mm 0.59mm
(0.023inch)
0.41mm
(0.016inch)
8.3MPa
(1200PSI)
PORTIER Ⅱ 800 000 8870 1350 1.8Fr/2.8Fr 920mm 0.59mm
(0.023inch)
0.41mm
(0.016inch)
8.3MPa
(1200PSI)
PORTIER Ⅱ 800 001 3415 1500 1.8Fr/2.8Fr 1200mm 0.59mm
(0.023inch)
0.41mm
(0.016inch)
8.3MPa
(1200PSI)

1 piece per box, Sterilized with EtO Gas

NANO 1.6 1.6Fr /2.4Fr
Product Name Product Code Length (mm) Distal O.D./
Proximal O.D.
Hydrophilic Coating Length (from tip) Shaft I.D. Max. Applicable G/W Pressure Proof Value
NANO 1.6 800 001 0487 1050 1.6Fr /2.4Fr 920mm 0.48mm  (0.019 inch) 0.36mm (0.014 inch) 8.3MPa
(1200PSI)
NANO 1.6 800 001 3417 1100 1.6Fr /2.4Fr 920mm 0.48mm  (0.019 inch) 0.36mm (0.014 inch) 8.3MPa
(1200PSI)
NANO 1.6 800 001 0488 1350 1.6Fr /2.4Fr 920mm 0.48mm  (0.019 inch) 0.36mm (0.014 inch) 8.3MPa
(1200PSI)
NANO 1.6 800 001 0489 1500 1.6Fr /2.4Fr 1070mm 0.48mm  (0.019 inch) 0.36mm (0.014 inch) 8.3MPa
(1200PSI)

1 piece per box, Sterilized with EtO Gas

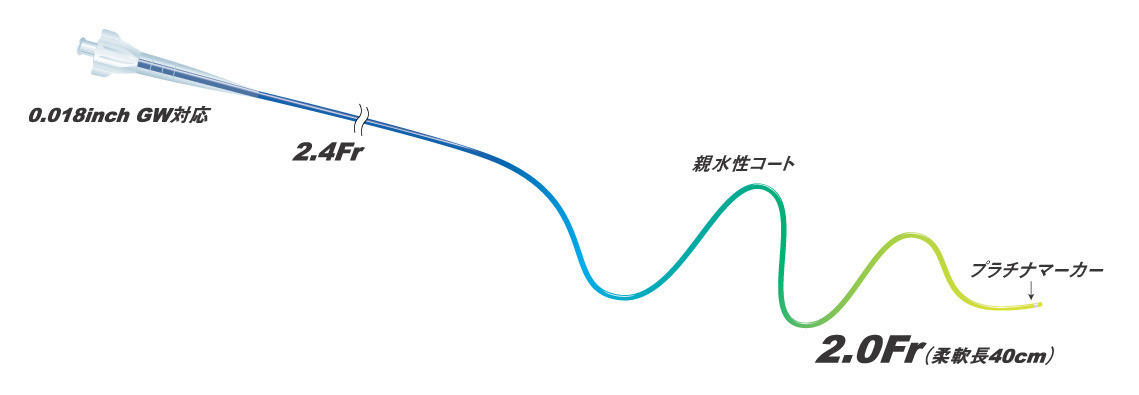

NANO 2.0 2.0Fr /2.4Fr
Product Name Product Code Length (mm) Distal O.D./
Proximal O.D.
Hydrophilic Coating Length (from tip) Shaft I.D. Max. Applicable G/W Pressure Proof Value
NANO 2.0 800 000 8737 1050 2.0Fr /2.4Fr 920mm 0.53mm      (0.021 inch) 0.46mm (0.018 inch) 7.2MPa
(1050PSI)
NANO 2.0 800 001 3421 1100 2.0Fr /2.4Fr 920mm 0.53mm      (0.021 inch) 0.46mm (0.018 inch) 7.2MPa
(1050PSI)
NANO 2.0 800 000 8738 1350 2.0Fr /2.4Fr 1220mm 0.53mm      (0.021 inch) 0.46mm (0.018 inch) 7.2MPa
(1050PSI)
NANO 2.0 800 000 8739 1500 2.0Fr /2.4Fr 1070mm 0.53mm      (0.021 inch) 0.46mm (0.018 inch) 7.2MPa
(1050PSI)

1 piece per box, Sterilized with EtO Gas

NANO 2.1 2.1Fr /2.4Fr
Product Name Product Code Length (mm) Distal O.D./
Proximal O.D.
Hydrophilic Coating Length (from tip) Shaft I.D. Max. Applicable G/W Pressure Proof Value
NANO 2.1 800 001 0636 1050 2.1Fr /2.4Fr 920mm 0.59mm (0.023 inch) 0.46mm (0.018 inch) 8.3MPa
(1200PSI)
NANO 2.1 800 001 3425 1100 2.1Fr /2.4Fr 920mm 0.59mm (0.023 inch) 0.46mm (0.018 inch) 8.3MPa
(1200PSI)
NANO 2.1 800 001 0637 1350 2.1Fr /2.4Fr 1220mm 0.59mm (0.023 inch) 0.46mm (0.018 inch) 8.3MPa
(1200PSI)
NANO 2.1 800 001 0638 1500 2.1Fr /2.4Fr 1070mm 0.59mm (0.023 inch) 0.46mm (0.018 inch) 8.3MPa
(1200PSI)

1 piece per box, Sterilized with EtO Gas
